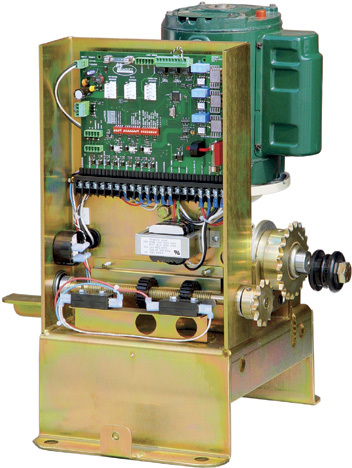

Ramset 100 Residential Slide Gate Opener

$929.00

Ramset 100 Residential Slide Gate Opener

Description

GENERAL SPECIFICATIONS

  • Ramset 1/2 HP Slide Gate Operator Ram-100
  • 1/2 HP, 120VAC, 50-60Hz with High Speed Ball Bearings and Resettable Over-Load Button Electric Motor
  • Emergency Foot Pedal Release
  • Motor: Continuous Duty

Electronic Features:

  • Maximum gate weight: 700 lbs.
  • Maximum gate length: 20’
  • Operating Temperature: -10 to 160 degrees F.
  • Gate Traveling Speed: Approx. 1’ per second.
  • Overall Dimensions: 16” x 16 ½” x 26”
  • Chassis: Heavy duty cut & formed by CNC machinery.
  • Cover: High Impact resistant charcoal gray polyethylene.
  • Chassis: Heavy duty cut & formed by CNC machinery.

Intelligate Control Board:

  • Automatic Timer
  • One pass, ERD Sensitivity Adjustments
  • Left / Right hand Switch Adjustment
  • 3-Wire Master/Slave Synchronization Cable
  • Plug-in Loop Detector (ILD-24s) Capability
  • Pre-warn & Constant Warn
  • Secure Close
  • Open & Close Delay
  • Relay Connection & Service Push Buttons
  • Radio Cycle
