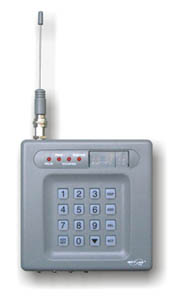

MultiLink R4G Gate Receiver for Gated Communities

$49.95 $46.55

MultiLink R4G Gate Receiver for Gated Communities

Description
  • A receiver for Gated Communities.
  • Compatible with up to 500 remotes (up to 1000 remotes with optional memory).
  • Works in conjunction with Skylink transmitters R3T2 and R3T4.
  • Add, delete and temporarily disable transmitter(s) individually.
  • Relay output rated 1Amp @24V AC/DC.
  • Programmable relay dry contact of NC or NO or Toggle mode.
  • Programmable timed relay contact from 0.3 – 2.5 seconds.
  • Three Super bright 7-segment LED Displays provides operation and programming.
  • 4 LEDs indicate the system activity.
  • Standard 16-key keypad with audible tone.
  • Supplied with a 9-inch antenna with standard F Type connector.
  • Operating range up to 300 feet.
  • Operates in 12 – 24V AC/DC.
  • Dimensions: 4-1/4×4-1/4×1 inches.

Support:

User’s Instructions

Installation is as simple as 1-2-3
  1. Connect the pushbutton or radio terminals from your gate opener to the 2 screw contacts labeled ‘Relay Com’ and ‘NO Contact’ on the Gate Receiver model R4G.
  2. Connect the 12V – 24V power from your gate opener to the Gate Receiver model R4G.
  3. Learn the transmitter R3T2 or R3T4 to the Gate Receiver model R4G.
Installation is now completed.
Activate the Keychain Transmitter to operate the gate opener.
