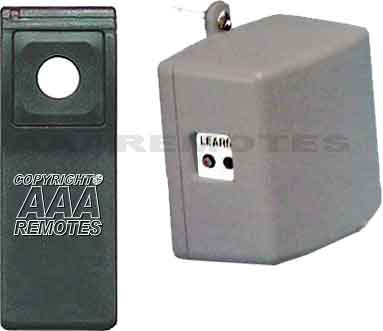

Linear MegaCode Universal Receiver and Transmitter Kit model MDRU-1T
The MDR-U is a versatile (universal) receiver that makes it very easy to equip nearly any garage door opener for use wit Linear’s popular MegaCode format transmitters. MegaCode uses a frequency of 318 MHz and features over one million radio codes to all but eliminate any possiblilty of code duplication. It offers simplified programming via the receiver’s learn mode.
Previously, when installers wanted to add MegaCode capability to a garage door opener that did not come already outfitted with a MegaCode receiver, they had to use Linear’s MDR receiver in combination with a power transformer. The MDR-U replaces the MDR and plugs directly into any electrical outlet. All that is required is running a single two-conductor wire from the MDR-U to the opener’s push button input.
The MDR-U has one normally open contact output. It can be used to send a remote control signal from up to 10 MegaCode transmitters. A learn mode dramatically simplifies programming to just a button press.
Relay: one normally open relay rated at 1 amp @ 32 VAC or VDC
Radio LED: provides visual indication of RF activity and learn mode functions
RF: integral 318 MHz super regenerative receiver @ -95 dBm sensitivity (nominal); receives MegaCode transmitters
Learn Button: press for 1-2 seconds to initate learn mode; press for 2-5 seconds to show number of transmitters in memory; press and hold 5 seconds or longer to erase all transmitters from memory
Screw Terminals: 2 position screw terminals accept 20-24 AWG wire
110 V AC +/- 10%, 60 Hz
-4ºF to +140ºF (-20ºC to +60ºC)
2.52 in W x 2.50 in H x 1.61 in D (64 x 63.5 x 40.9 mm)
excluding mounting screw terminal and screw
MDR-U; supports 10 MegaCode transmitters
FCC Part 15
UL 244A – Solid-State Controls for Appliances
