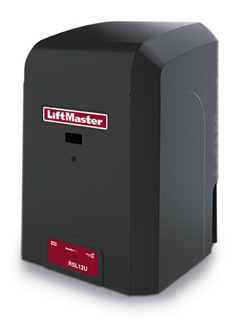

Unrivaled performance, safety and accessibility. Built to deliver unsurpassed safety and performance the 2016 UL listed gate operators and monitored safety entrapment devices provide peace of mind for every gate application. Now includes the monitored retro-reflective photo eye (LMRRU).

Features:

• LED Diagnostic display – simplifies installation and troubleshooting
• Solar-ready Ultra-reliable System – Simple solar conversion delivers power when you need it most and is extremely power efficient at all other times to maximize solar performance
• Bi-Part Delay – Monitors and adjusts speed an position of each wing to ensure primary gate closes last.
• Synchronized Close – Simultaneously closes gates
• HOMELINK Compatible – Version 4 and higher
• Security + 2.0 On-Board Radio Receiver – Up to 50 remote controls (unlimited with 811LM/813LM)

Specifications:

• Power: 12VDC or Solar Powered
• Accessory Power: 12VDC 500mA output. Switched and unswitched power.
• Monitored Safety: 3 main board, 3 optional expansion board
• Temperature Specifications: Witout Heater: -4 degrees F (-20 degrees C) to 140 degrees F (60 degrees C); With Optional Heater (HTR): -40 degrees F (-40 degrees C) to 140 degrees F (60 degrees C)

Construction:

• P3 Motor: 12VDC continuous-duty motor
• Operator Duty Rating: 120 cycles per day
• Chassis: Consturcted wit 1/4″ gold zinc-plated steel for rust prevention
• Worm Gear Reduction: Commercial oil bath gearboxes wtih 15:1 worm gear reduction
• Cover: 1-piece UV-resistant polyethylene cover
• Operator Weight: 100 Lbs.
• Recommended Capacities: Rated for gates up to 25 ft. in length or weighing up to 800 lbs.
