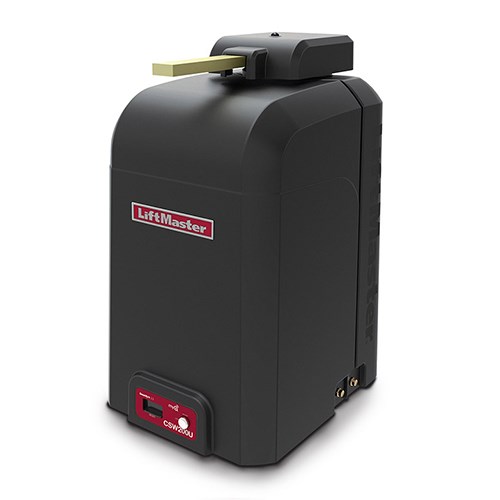

LiftMaster CSW200101U 1HP AC High Traffic Commercial Swing Gate Operator


LiftMaster CSW200101U 1HP AC High Traffic Commercial Swing Gate Operator

Out of stock


The “ROLLS ROYCE” of the gate industry just got better with the smartphone capability! The CSW200-u models of swing gate operators are the first choice for heavy-traffic applications and high-demand customers including large development and management companies, prestigious residential gated communities and custom home builders. Featuring the highest quality components and backed by years of proven reliability, each unit is carefully inspected and mechanically tested to provide unsurpassed performance. Unique engineering innovations ensure that any ELITE models will meet the needs of almost every type gated entrance. All backed by the safety and reliability of the most advanced control board in the industry


  • Comes equipped with a safety photocell
  • Smartphone capable
  • User-friendly control board with input/output LED’s
  • Electronic reversing sensor built into control board
  • Precise synchronized movement between two gate operators using 3-wires
  • Adjustable timer from 0-60 seconds
  • Build-in radio receiver compatible with the 8-series & Max series remotes
  • Super quiet operation
  • Soft stop
  • Precision limit switches
  • Surge protection
  • On/off switch
  • Built-in 120V AC power receptacle
  • Alarm reset button
  • Stainless steel front access panel
  • Gold zinc plated chassis
  • Weatherproof polyethylene cover
  • Manual release handle


  • Maximum gate length 22ft
  • Maximum gate weight 2,000 lbs
  • 90 degrees opening in 13-15 seconds
  • Two 30-to-1  wormgear reducers
  • Two ½ HP continuous duty motor
  • 120VAC
  • 9amp
  • 15″ x 20.5″ x 28″H
  • 120VAC
  • UL325 & UL 991
  • 7-Year single home application
  • 5-Year commercial application
