iCLASS was specifically designed to make access control more powerful, more versatile, and more secure. iCLASS 13.56 MHz read/write contactless smart card technology provides versatile interoperability in applications such as access control, network log-on security, cashless vending, time and attendance, event management and biometric identification.
iCLASS technology ensures high security with mutual authentication between card and reader, encrypted data transfer, and 64-bit diversified keys for read/write capabilities. Securely separated files enable multiple applications and support future growth.

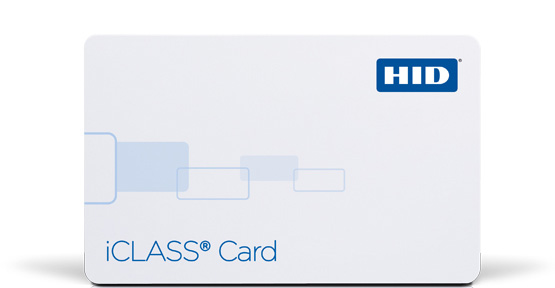

The iCLASS card meets ISO standard for card size and thickness for use with direct image and thermal transfer printers. It features a graphics quality surface optimized for Photo ID printing, and is available in standard PVC construction, or a composite polyester/PVC construction for more demanding high wear and tear environments. The card can be produced with visual security and anti-counterfeiting features such as holograms, ultra-violet fluorescent inks, micro-printing, or a custom logo to quickly and easily identify genuine cards.
Typical Maximum Read Range*
R10 2.0-3.0″ (5.0-7.6cm)
R30/RW300 2.0-3.5″ (5.0-8.9cm)
R40/RW400 2.5-4.5″ (6.3-11.4cm)
RK40/RWK400 3.0-4.0 (7.6-10.1 cm)
*Dependent upon installation conditions.
2.127″ x 3.375″ x 0.033″ max. (5.40 x 8.57 x 0.084 cm)
0.20oz (5.7 g)
Thin, flexible polyvinyl chloride (PVC) laminate.
-40 to 158 F (-40 to 70 C)
As suggested by ISO/IEC:
14443B mode – 106 kbps
<100 ms typical
14443 B2 mode – 212 Kbps
15693 mode – 26 Kbps
2K bit (256 Bytes) card 2 application areas
16K bit (2K Bytes) card 2 or 16 application areas
Min. 100,000 cycles
