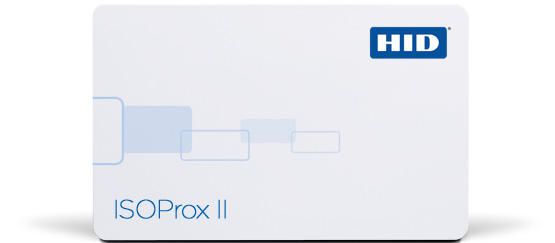

The ISOProx II Card offers proximity technology with photo identification capability on a single card. It is ISO 7810 compliant, with a nominal thickness of .030″. The card features a graphics quality surface optimized for Photo ID printing, and is available in standard PVC construction, or a composite polyester/PVC construction for more demanding high wear and tear environments.
Like all HID ISO cards, the ISOProx II card can be produced with visual security and anti-counterfeiting features such as holograms, ultra-violet fluorescent inks, micro-printing, or a custom logo to quickly and easily identify genuine cards.
When customizing cards using Re-Transfer Printers that fuse images to the surface of the card by applying heat and pressure (such as the Fargo HDP5000) we recommend the use of composite cards, which are better able to withstand the higher application temperatures.
Typical Maximum* Read Range
ProxPoint® Plus reader-up to 2.5″ (6.25 cm)
MiniProx® reader-up to 5″ (12.5 cm)
ThinLine II® reader-up to 5″ (12.5 cm)
ProxPro® reader-up to 7″ (17.5 cm)
ProxPro® II reader-up to 8″ (20 cm)
Prox80™-up to 5″ (12.7 cm)
MaxiProx® reader-up to 20″ (50 cm)
*Dependent on local installation conditions.
2.125″ x 3.370″ x 0.030″ ± 0.003″ (5.4 x 8.6 x 0.076 ± 0.0076 cm)
Thin, flexible polyvinyl chloride (PVC) laminate or composite Polyester/PVC.
