Elite Miracle-One Electro-mechanical Residential Swing Gate Operator

$999.00

Miracle-One Electro-Mechanical Residential Swing Gate Operator

Out of stock

Description

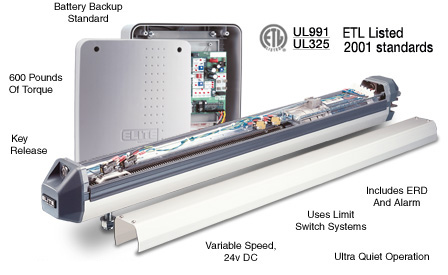

The Miracle-One is the first linear mechanical, 24-volt DC gate operators that offers all the features the consumer demands. One of these features is variable speed, which is electronically controlled by a micro controller and precise limit switch system. The gate operator starts the cycle slowly, increases in speed, and then comes to a stop slowly with the use of internal limit switches. This reduces stress and creates consistently smooth opeartion. Battery backup is included to provide fully functional operation for 100-200 cycles in case of power failure. Built-in 315 MHz receiver included. Power transformer required to power unit included. Included is a 2-way reversing sensor and a vandalism/burglar alarm indicator. The state of the art features offered in the Miracle-One make it one of the most advanced operators in the world and will create new standards in the gate operator industry.

MECHANICAL SPECIFICATIONS

  • Can Be Installed Two Ways: Open Inside Close Outside Or Open Outside Close Inside.
  • Capabilities: Max Gate Size 15′ Wide, 600 Lbs.
  • Travel Speed: 14 to 18 Seconds 90-degree Opening.
  • Dimensions: L 39 1/2″ X W 3 1/2″ X H 4″.
  • Operation Cycles: 100 Cycles/day
  • Torque: 600 Lbs. Of Torque.
  • Shipping Weight: 58 Lbs.
  • Motor: 24V DC, 12 Amp
  • Finishing: Aluminum
  • Output Shaft: 1″ Shaft

ELECTRONIC SPECIFICATIONS

  • Running System: Microcontroller With Built-in Watchdog System.
  • Modular Board: Uses Leds To Indicate All Input And Output Functions.
  • Erd Sensor: If The Gate Hits A Vehicle While Opening, It Will Reverse A Few Inches And Stops. If The Gate Hits A Vehicle While Closing, It Will Reopen.
  • Timer: Can Be Set From 3 To 60 Seconds, Or “push-open/stop/close” Operation.
  • Master/slave: Dictates Synchronized Movement Between Two Gate Operators.
  • Safety Loop Input: Anti-tailgating System Uses A “stop Only” Method Of Operation. This Input Will Not Work As A Commercial Loop System.
  • Alarm Output: Can Be Interfaced With Any Home Alarm System. Alarm Will Sound If The Gate Is Forced Open. Optional Siren Can Be Installed.
  • Spike Suppressors: System Is Protected By Spike Suppressors.
  • Alternate Outputs: Sensors Alarm, Alarm System, And Magnetic Locks.
  • Electronic Inputs: Any Type Of Radio Receiver, Full-control System “push-open/stop/close”, Safety Loop, Photocell, Telephone Entry, And Key Switch.
  • Control Board Housing Dim.: Length 10.5″ – Width 4.25″ – Height 12″
  • Housing Finish: Entire Housing Is Polyethylene plastic

*Design and specifications subject to change without notice.

Options: Click the links to add multiple options
A-POW-3 Power Transformer
A-BT-12 Backup Battery 7 AH 12 Volt DC
A-SOLAR-ADP Solar Panel Adapter for 12 to 24 Volt
SOLAR-3 Solar Panel

**** Note: Shipping costs may vary according to the respected shipping weight, destination, cost of items and insurance of the package. Manual adjustment of shipping cost may be necessary in these situations.
